5052 ALUMINUM COIL DESCRIPTION:
The 5052 aluminum coil is an alloy made up of 2.5 percent magnesium and 0.25 percent chromium. It’s considered to have great workability and weldability. It has medium static and high fatigue strength. The corrosion resistance of this aluminum is very good, especially in marine environments. This metal has excellent thermal conductivity and low density, like with other aluminum alloys. To harden aluminum 5052, cold working can be used. Heat treatment cannot be used to obtain higher alloy strength.
The fatigue properties of this aluminum are excellent, with a limit of 115 MPa while in the H32 temper and 123 MPa while in H34 temper. Compared to the other aluminum alloys, the 5052 grade of aluminum has midway alloying content and strength. In slightly alkaline environments, 5052 alloys show a resistance level. Its resistance to marine environments is better than that of 5005 alloys, making it a more popular choice for marine applications.
5052 ALUMINUM SHEET CHEMICAL COMPOSITION:
| Elements | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others | Al | ||
| Content | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | - | 0.15 | Remain | ||
5052 ALUMINUM SHEET MECHANICAL PROPERTIES:
| Alloy Temper | Specified thickness | Tensile strength | Yield strength | Elongation | ||||||||
| (MPa) | (MPa) | (%) | ||||||||||
| 5052 HO/H111 | 0.3~0.63mm | 173-213 | min66 | min 15 | ||||||||
| 0.63~1.2mm | min 17 | |||||||||||
| 1.2~6.3mm | min 19 | |||||||||||
| 6.3~50mm | min 18 | |||||||||||
| 5052/H32 or 5052 H22 | 0.4~0.63mm | 214-262 | min159 | min 4 | ||||||||
| 0.63~1.2mm | min 5 | |||||||||||
| 1.2~6.3mm | min 7 | |||||||||||
| 6.3~50mm | min 11 | |||||||||||
| 5052/H34 or 5052 H24 | 0.4~0.63mm | 235-282 | min180 | min 3 | ||||||||
| 0.63~1.2mm | min 4 | |||||||||||
| 1.2~6.3mm | min 6 | |||||||||||
| 6.3~50mm | min 10 | |||||||||||
| 5052/H36 or 5052 H26 | 0.1~0.32mm | 256-303 | min200 | min 2 | ||||||||
| 0.32~0.63mm | min 3 | |||||||||||
| 0.63~4mm | min 4 | |||||||||||
| 5052/H38 or 5052 H28 | 0.15~0.32mm | min269 | min221 | min 2 | ||||||||
| 0.32~0.63mm | min 3 | |||||||||||
| 0.63~3.2mm | min 4 | |||||||||||
RELEVANT GRADE OF 5052 ALUMINUM COIL
Relevant grade of 1050 Aluminum Coil | |

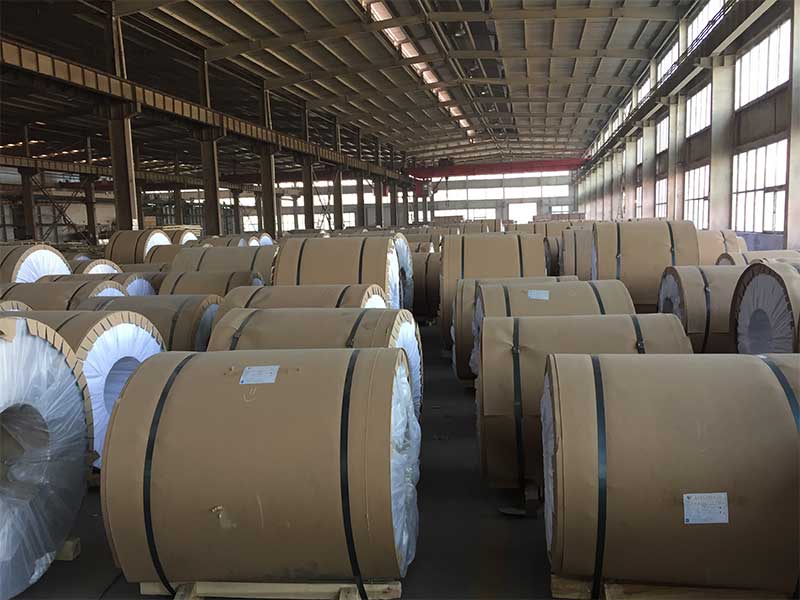

5052 ALUMINUM COIL PACKING:
5052 aluminum coil of Haomei Aluminum. meet the export standard. Plastic film and brown paper can be covered at customers’ need. What’s more, wooden case or wooden pallet is adopted to protect products from damage during the delivery. There are two kinds of packaging, which is eye to wall or eye to sky. Customers can choose either of them for their convenience. Generally speaking, there are 2 tons in one package, and loading 18-22 tons in 1×20′ container, and 20-24 tons in 1×40′ container.
As a China-based 5052 aluminum coil manufacturer and supplier, we at Haomei also produce aluminum foil, coated aluminum coil, aluminum plate, anodising aluminum sheet, embossed aluminum sheet, etc. For more detailed information, please continue browsing our website or feel free to contact us directly.
